Japanese Best Quality Q235 Carbon Steel Vacuum Sewage Tanker Truck 10000l Sewage Suction Truck

1 Unit
MOQ

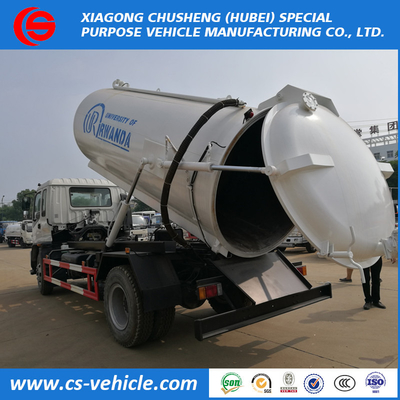

Japanese Best Quality Q235 Carbon Steel Vacuum Sewage Tanker Truck 10000l Sewage Suction Truck
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Transmission Type: Manual
Condition: New
Emission Standard: Euro 2
Fuel Type: Diesel
Tank Volume: 10000L
车身尺寸: 8200*2500*3200
Model Number: Sewage Suction Truck
Horsepower: 266HP
Gross Vehicle Weight: 9500
Product name: Vacuum Sewage tanker truck 10000l japanese sewage suction truck
Chassis brand: Dongfeng Foton Forland Howo Faw
Tank capacity: 6000liter 8000liter 10000liter 12000liters
Tank Material: Q235 carbon steel
Tank thickness: 6mm
wheel base: 3360mm 3800mm 4200mm 4500mm
Vacuum pump suction speed: 45 L/s
Pump working pressure: 400Pa
Inlet and Outlet pipe size: 108mm
Warranty: one year for three key parts: engine, gearbox and axle
Informazioni di base
Model Number: Sewage Suction Truck
Termini di pagamento e spedizione
Packaging Details: Nude packaging, by RO-RO vessel or Bulk vessel
Supply Ability: 1000 Unit/Units per Month japanese Sewage suction truck
Descrizione di prodotto
Product Description

Best quality Vacuum Sewage tanker truck 10000l japanese sewage suction truck

Features
A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.

The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.

Truck brand
Japanese brand
Cabin
with A/C
Dimensions(mm)
8200*2500*3200 mm
Wheelbase(mm)
4500
Curb weight(kg)
9450 kgs
Front/Rear Axle loading(kg)
6300/13000 kg
Wheel track (front/rear) (mm)
1960/1855 mm
Front/Rear overhang(mm)
1335/1880 mm
Tire
10.00R20, total 7 pieces
Engine
266hp, Euro2
                                                                        Sewage Suction & Cleaning System
Sewage tank capacity
10000 liters
Tank material
Q235 carbon steel
Vacuum pump pressure
400 Pa
Inlet and Outlet pipe
108mm dia
Main parts
1. Water-gas separator
2. Oil-gas separator
3. Four way valve
4. Safety valve
5. Anti overflow valve
6. Anti overflow warning device
7. Hydraulic control rear cover
8. Tipping sewage tank body
Detailed Images
Structure
Successful Cases





7 units Sewage Suction Truck exported to Rwanda






24 units Compressed Garbage Truck exported to  Myanmar







7 units Road Sweeper Truck exported to Cambodia







20 units Concrete Mixer Truck exported to                Thailand


Our Company

1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.

Related Products

1.Water Truck

2.Insulation Truck and Milk Truck

3.Sewage Suction Truck

4.Garbage Truck
5.Manlift Truck/Aerial Platform Truck

6.Truck with Crane

7.Fuel Truck/

8.Chemical Truck
9.Bulk Cement Truck

10.Concrete Mixer Truck

11.Fire Truck

12.Dump Truck
13.Van Truck/Refrigerated Truck,

14.Wrecker/Tow Truck,

15.Flatbed Truck/Low Bed
16.Tractor,

17.LPG Truck;

18.Trailers

19. Sewage Suction Truck for Best quality Vacuum Sewage tanker truck 10000l japanese sewage suction truck

Contact Us

For more details about sewage suction truck, please contact:


Krystal Zhang
Sales Manager
Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou, Hubei, China
Office: Room 1108, Eurasia Plaza, No.20 Jinyinhu Road, East- west lake District, Wuhan, Hubei, China.
Tel: +86-27-59215038; Fax: +86-27-59215082
Mob/: +86-15171412234
Web: www.cs-vehicle.com
